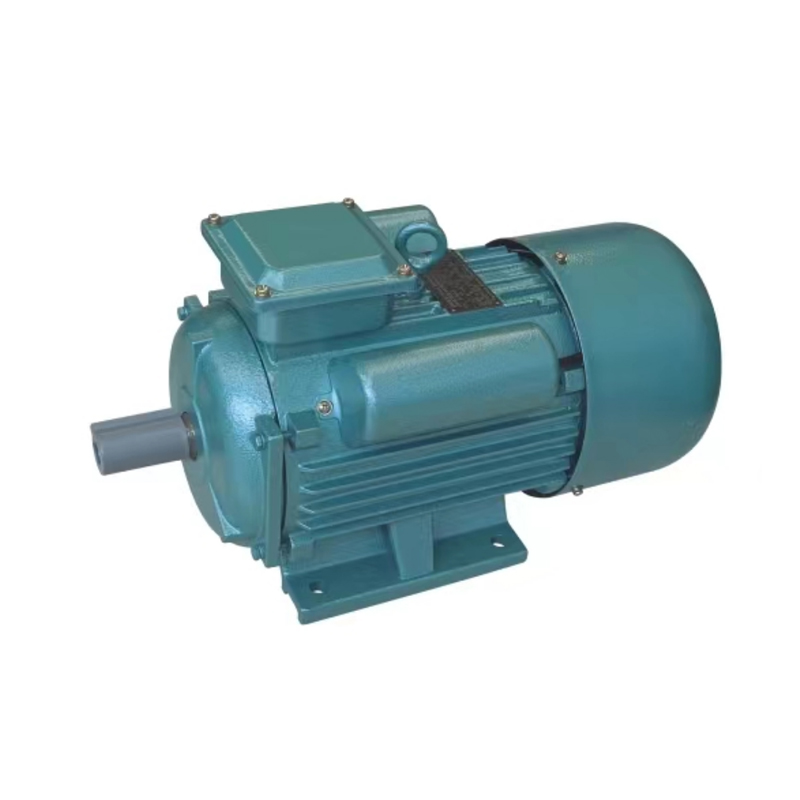

JWI系列電動機技術參數Technical parameters of JW1 series motors
| Type | Output | Speed | Efficiency | Power faclor | Rated current | Ts/Tn | Tmax/Tn | Is/In | ALU | C/l | Noisy | |||
| (kw) | (rpm) | (%) | (Cosφ） | 380V | 400V | 415V | (kg) | (kg) | dB(A) | |||||
| JW1 | 56M1-2 | 0.09 | 2750 | 50 | 0.7 | 0.39 | 0.37 | 0.4 | 2.1 | 2.2 | 5.2 | 3.6 | 58 | |
| JW1 | 56M2-2 | 0.12 | 2750 | 53.6 | 0.72 | 0.47 | 0.45 | 0.4 | 2.1 | 2.2 | 5.2 | 3.9 | 58 | |
| JW1 | 63M1-2 | 0.18 | 2730 | 58.3 | 0.8 | 0.59 | 0.56 | 0.5 | 2.2 | 2.2 | 5.5 | 4.8 | 61 | |
| JW1 | 63M2-2 | 0.25 | 2800 | 61.9 | 0.81 | 0.76 | 0.72 | 0.7 | 2.2 | 2.2 | 5.5 | 5.1 | 61 | |
| JW1 | 71M1-2 | 0.37 | 2756 | 65.8 | 0.81 | 1.05 | 1 | 1 | 2.2 | 2.2 | 6.1 | 6 | 64 | |
| JW1 | 71M2-2 | 0.55 | 2792 | 69.4 | 0.82 | 1.47 | 1.4 | 1.3 | 2.2 | 2.2 | 6.1 | 6.5 | 64 | |
| JW1 | 80M1-2 | 0.75 | 2830 | 72.1 | 0.83 | 1.9 | 1.8 | 1.7 | 2.2 | 2.3 | 6.1 | 8.7 | 15 | 67 |
| JW1 | 80M2-2 | 1.1 | 2830 | 75 | 0.84 | 2.7 | 2.5 | 2.4 | 2.2 | 2.3 | 7 | 9.5 | 16.5 | 67 |
| JW1 | 90S-2 | 1.5 | 2840 | 77.2 | 0.84 | 3.5 | 3.3 | 3.2 | 2.2 | 2.3 | 7 | 11.8 | 20 | 72 |
| JW1 | 90L-2 | 2.2 | 2840 | 79.7 | 0.85 | 4.9 | 4.7 | 4.5 | 2.2 | 2.3 | 7 | 13.5 | 24 | 72 |
| JW1 | 100L-2 | 3 | 2860 | 81.5 | 0.87 | 6.4 | 6.1 | 5.9 | 2.2 | 2.3 | 7.5 | 21 | 31 | 76 |
| JW1 | 112M-2 | 4 | 2880 | 83.1 | 0.88 | 8.3 | 7.9 | 7.6 | 2.2 | 2.3 | 7.5 | 28 | 38 | 77 |
| JW1 | 132S1-2 | 5.5 | 2900 | 84.7 | 0.88 | 11.2 | 10.7 | 10.3 | 2.2 | 2.3 | 7.5 | 39 | 58 | 80 |
| JW1 | 132S2-2 | 7.5 | 2900 | 86 | 0.88 | 15.1 | 14.3 | 13.8 | 2.2 | 2.3 | 7.5 | 44.5 | 62 | 80 |
| JW1 | 160M1-2 | 11 | 2930 | 87.6 | 0.89 | 21.4 | 20.4 | 19.6 | 2.2 | 2.3 | 7.5 | 69.5 | 103 | 86 |
| JW1 | 160M2-2 | 15 | 2930 | 88.7 | 0.89 | 28.9 | 27.4 | 26.4 | 2.2 | 2.3 | 7.5 | 78 | 112 | 86 |
| JW1 | 160L-2 | 18.5 | 2930 | 89.3 | 0.9 | 35 | 33.2 | 32 | 2.2 | 2.3 | 7.5 | 88.5 | 135 | 86 |
| JW1 | 180M-2 | 22 | 2940 | 89.9 | 0.9 | 41.3 | 39.2 | 37.8 | 2 | 2.3 | 7.5 | 165 | 89 | |
| JW1 | 200L1-2 | 30 | 2950 | 90.7 | 0.9 | 55.8 | 53 | 51.1 | 2 | 2.3 | 7.5 | 215 | 92 | |
| JW1 | 200L2-2 | 37 | 2950 | 91.2 | 0.9 | 68.5 | 65.1 | 62.7 | 2 | 2.3 | 7.5 | 232 | 92 | |
| JW1 | 225M-2 | 45 | 2970 | 91.7 | 0.9 | 82.8 | 78.7 | 75.9 | 2 | 2.3 | 7.5 | 285 | 92 | |
| JW1 | 250M-2 | 55 | 2970 | 92.1 | 0.9 | 100.8 | 95.8 | 92.3 | 2 | 2.3 | 7.5 | 375 | 93 | |
| JW1 | 280S-2 | 75 | 2970 | 92.7 | 0.9 | 136.6 | 129.8 | 125.1 | 2 | 2.3 | 7.5 | 500 | 94 | |
| JW1 | 280M-2 | 90 | 2970 | 93 | 0.91 | 161.6 | 153.5 | 148 | 2 | 2.3 | 7.5 | 550 | 94 | |
| JW1 | 315S-2 | 110 | 2980 | 93.3 | 0.91 | 196.9 | 187 | 180.2 | 1.8 | 2.2 | 7.1 | 860 | 96 | |
| JW1 | 315M-2 | 132 | 2980 | 93.5 | 0.91 | 235.7 | 223.9 | 215.8 | 1.8 | 2.2 | 7.1 | 960 | 96 | |
| JW1 | 315L1-2 | 160 | 2980 | 93.8 | 0.92 | 281.7 | 267.6 | 257.9 | 1.8 | 2.2 | 7.1 | 1020 | 99 | |
| JW1 | 315L2-2 | 200 | 2980 | 94 | 0.92 | 351.4 | 333.8 | 321.7 | 1.8 | 2.2 | 7.1 | 1080 | 99 | |
| JW1 | 355M-2 | 250 | 2980 | 94.3 | 0.92 | 437.8 | 415.9 | 400.9 | 1.6 | 2.2 | 7.1 | 1700 | 103 | |
| JW1 | 355L-2 | 315 | 2980 | 94.5 | 0.92 | 550.5 | 523 | 504.1 | 1.6 | 2.2 | 7.1 | 1850 | 103 | |
| JW1 | 400M1-2 | 355 | 2985 | 95.7 | 0.9 | 626.2 | 594.9 | 573.4 | 1.6 | 2 | 7.5 | 2750 | 106 | |
| JW1 | 400M2-2 | 400 | 2985 | 96 | 0.9 | 703.4 | 668.2 | 644.1 | 1.7 | 2 | 7.5 | 2880 | 106 | |
| JW1 | 400M3-2 | 450 | 2985 | 96.1 | 0.9 | 790.5 | 751 | 723.9 | 1.5 | 2 | 7.5 | 3000 | 109 | |
| JW1 | 400L-2 | 500 | 2985 | 96.2 | 0.91 | 867.8 | 824.4 | 794.6 | 1.5 | 2 | 7.5 | 3160 | 109 | |
